Clamping Type Stud Bolts
Our Clamping Type Stud Bolts are manufactured in nominal diameters ranging from 1/8"- 3" (M3 – M80). We offer fasteners in both USCS/Imperial and metric sizes.
- Product Introduction
Description
Our Clamping Type Stud Bolts are manufactured in nominal diameters ranging from 1/8"- 3" (M3 – M80). We offer fasteners in both USCS/Imperial and metric sizes.
We are advanced and comprehensive range of capabilities include engineering, R&D, prototyping, custom manufacturing, precision processing and testing. Our all materials are sourced from the most reputable and exacting foundries in the world. We maintain a multi-million-dollar inventory of fasteners in our product warehouse, which enables us to select, package and expedite your stud bolt order quickly.
We are proud to serve our distributors, EPCs, OEM and MRO customers worldwide.
Our Clamping Type Stud Bolts meet applicable ASTM, ANSI, ASME, SAE, API, NAS, AN, MS, NACE, ISO, DIN, and KS standards.
Features
1. Clamping design: Clamping Type Stud Bolts feature a clamping design, using nuts or clamping devices to secure and fasten threaded components.
2. Multiple sizes and specifications: The product offers a variety of sizes and specifications to accommodate different application scenarios and thread requirements.
3. High-strength material: Are typically made from high-strength alloy steel or stainless steel, providing excellent tensile strength and corrosion resistance.
4. High clamping force: The product's clamping design provides high clamping force, ensuring a secure connection of threaded components.
5. Easy installation: Are designed for easy installation and adjustment, improving installation efficiency.
6. Reversible assembly: The product's design allows for reversible assembly, making it convenient for maintenance and disassembly purposes.
7. Wide range of applications: Are widely used in industries such as mechanical, construction, automotive, etc. , for connecting and securing threaded components.
8. Multiple material options: The product offers a variety of material options, such as carbon steel, alloy steel, stainless steel, etc. , to meet different environmental and application requirements.
9. Wear resistance: Exhibit good wear resistance, suitable for long-term use and high-load environments.
10. Compliance with standards: The product complies with international and industry standards, ensuring consistent quality and performance.
Specifications
|
|
|||||||

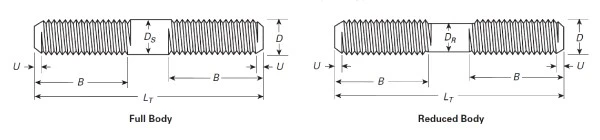

| Dimensions For Clamping Type Studs | |||||||
| Nominal Size | D | Bmin | Umax = 2 Thread Pitches | ||||
| Diameter | Nut End Minimum Full Thread Length | ||||||
| L ≤ 10 | 10 | L >16 | UNC Threads | UNF Threads | 8UN Threads | ||
| 1/4 | 0.2500 | 0.750 | 1.000 | 1.500 | 0.100 | 0.071 | … |
| 5/16 | 0.3125 | 0.875 | 1.125 | 1.625 | 0.111 | 0.083 | … |
| 3/8 | 0.3750 | 1.000 | 1.250 | 1.750 | 0.125 | 0.083 | … |
| 7/16 | 0.4375 | 1.125 | 1.375 | 1.875 | 0.143 | 0.100 | … |
| 1/2 | 0.5000 | 1.250 | 1.500 | 2.000 | 0.154 | 0.100 | … |
| 9/16 | 0.5625 | 1.375 | 1.625 | 2.125 | 0.167 | 0.111 | … |
| 5/8 | 0.6250 | 1.500 | 1.750 | 2.250 | 0.182 | 0.111 | … |
| 3/4 | 0.7500 | 1.750 | 2.000 | 2.500 | 0.200 | 0.125 | … |
| 7/8 | 0.8750 | 2.000 | 2.250 | 2.750 | 0.222 | 0.143 | … |
| 1 | 1.0000 | 2.250 | 2.500 | 3.000 | 0.250 | 0.167 | … |
| 1-1/8 | 1.1250 | 2.500 | 2.750 | 3.250 | 0.286 | 0.167 | 0.250 |
| 1-1/4 | 1.2500 | 2.750 | 3.000 | 3.500 | 0.286 | 0.167 | 0.250 |
| 1-3/8 | 1.3750 | 3.000 | 3.250 | 3.750 | 0.333 | 0.167 | 0.250 |
| 1-1/2 | 1.5000 | 3.250 | 3.500 | 4.000 | 0.333 | 0.167 | 0.250 |
| 1-5/8 | 1.6250 | 3.500 | 3.750 | 4.250 | … | … | 0.250 |
| 1-3/4 | 1.7500 | 3.750 | 4.000 | 4.500 | 0.400 | … | 0.250 |
| 1-7/8 | 1.8750 | 4.000 | 4.250 | 4.750 | … | … | 0.250 |
| 2 | 2.0000 | 4.250 | 4.500 | 5.000 | 0.444 | … | 0.250 |
| 2-1/8 | 2.2500 | 4.750 | 5.000 | 5.500 | 0.444 | … | 0.250 |
| 2-1/2 | 2.5000 | 5.250 | 5.500 | 6.000 | 0.500 | … | 0.250 |
| 2-3/4 | 2.7500 | 5.750 | 6.000 | 6.500 | 0.500 | … | 0.250 |
| 3 | 3.0000 | … | 6.500 | 7.000 | 0.500 | … | 0.250 |
